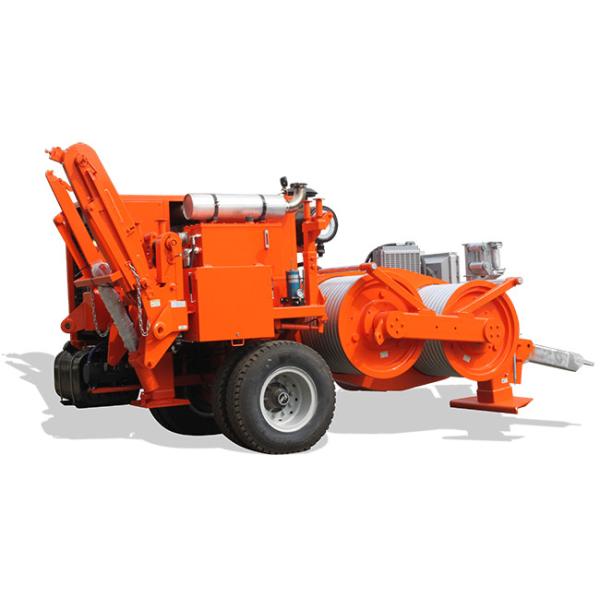

160kn Diesel 239kw 320hp Transmission Line Stringing Equipment Hydraulic Pulling Machine

  • 1
  • 2

Brand Name : Boyu

Model Number : TY160

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Max intermittent pull : 160kN

Speed at max pull : 2.5km/h

Total weight : 5500kg

Max diameter of rope reel : 1600mm

Engine : Cummins

Diesel : 239kw(320hp)

Electrical system : 24V

Type : Transmission Line Stringing Equipment Hydraulic Puller

Contact Now

TY160 Transmission Line Stringing Equipment 160kN Diesel 239kw(320hp) Hydraulic Puller

TY160 Hydraulic Puller
  1. The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands.
  2. Besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Characteristics
  1. Bull-wheel diameter: 620mm
  2. Max diameter of rope reel: 1600mm
  3. Max rope diameter : 24mm
  4. Groove number: 10
  5. Total weight: 5500kg
  6. Overall dimension (length*width*height): 4300×2300×2400mm
Performance
  1. Max intermittent pull: 160kN
  2. Max continuous pull: 120kN
  3. Pull at max speed: 60kN
  4. Speed at max pull: 2.5km/h
  5. Max speed: 5km/h
Engine
  1. Diesel: 239kw(320hp)
  2. Cooling system: Water
  3. Electrical system: 24V
Main configuration
  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth
  3. Main motor: German Rexroth
  4. Operating handle: German Rexroth
  5. speed reducer: German Rexroth
  6. Hydraulic meter: German
  7. Tail bracket hoisting motor: American Eton
Hydraulic Transmission
  1. Closed hydraulic circuit for step less speed variation in both rotating directions.
  2. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Configuration
  1. Hydraulic front stabilizer
  2. Hydraulic oil cooling system
  3. Grounding connection point
  4. Control instruments for hydraulic system and diesel engine
  5. Hydraulic dynamometer with set-point and automatic control of maximum pull
  6. On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
Additional Devices
  1. Swivel guide rope roller
  2. Lighting system for the trailer
  3. Trailer for towing at max speed of 30 km/h
  4. Extra shaft
  5. Hydraulic rope clamp for reel change
  6. Digital speed and meter counter (extra charge)

160kn Diesel 239kw 320hp Transmission Line Stringing Equipment Hydraulic Pulling Machine

Our Services Quality, loyalty and service is our faith!
  1. We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.
  2. Once receive the customer’s enquiry , we will response within 24 hours.
  3. Do the best Cable Stringing Roller Transmission Line Stringing Accessories in China.
  4. We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
  5. We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.
  6. Deemed continuous improvement as our permanent pursuits.
